CUSTOM ORDER #141333

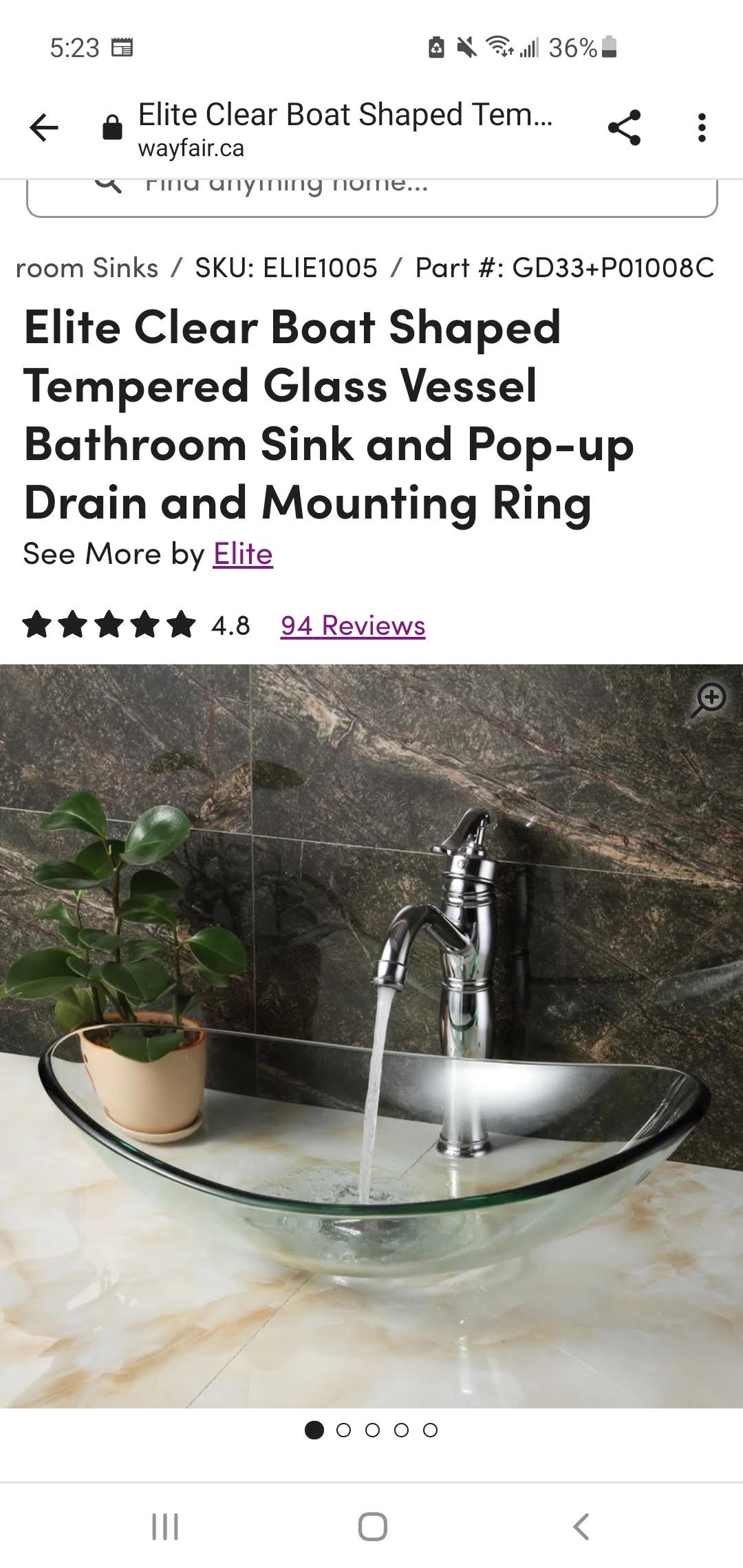

OK! I’ve got good news and bad news.  The sink arrived after being stuck in BC but there are no plans or templates with it.  That said, I sort of set one up.  I can get better/ more measurements if you need, just let me know.

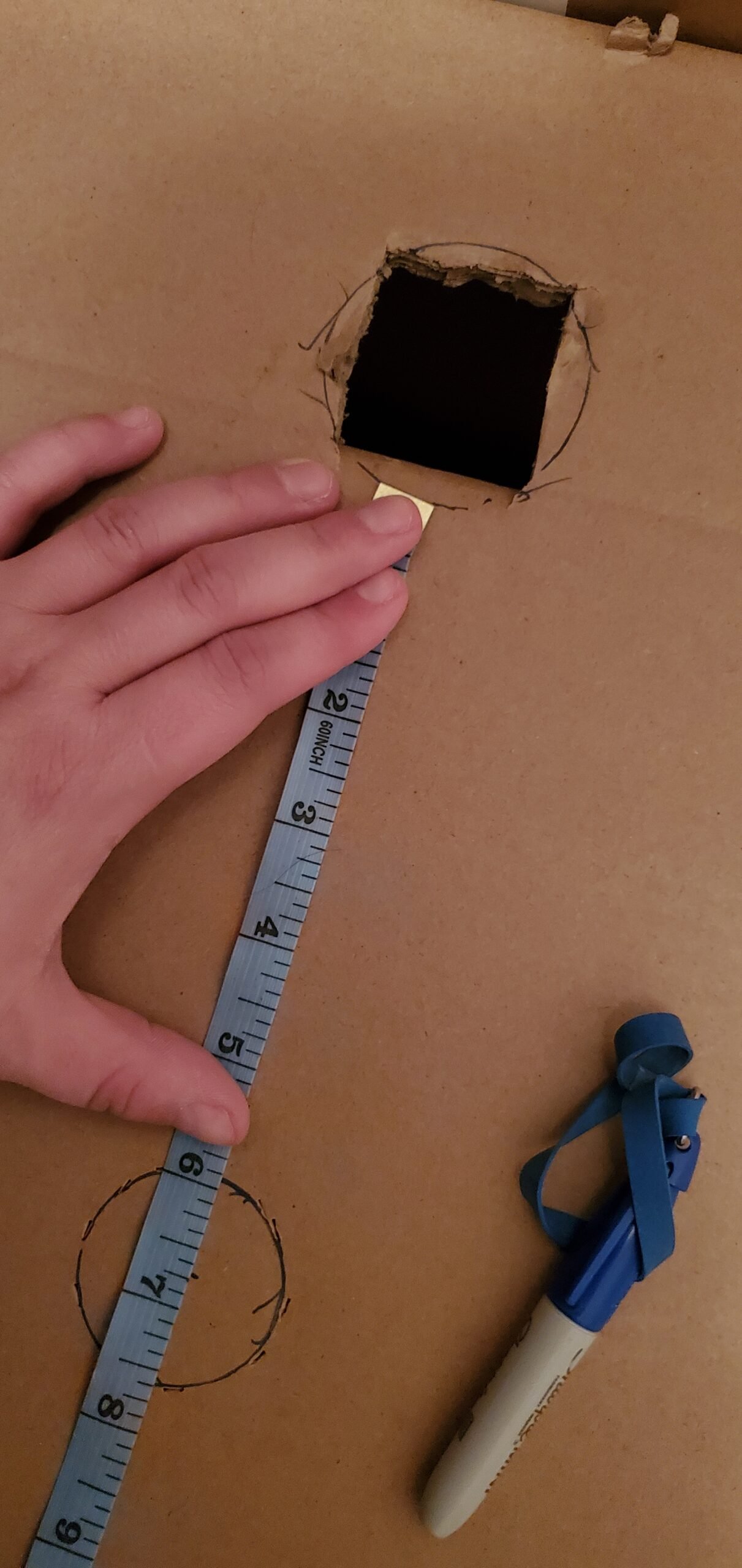

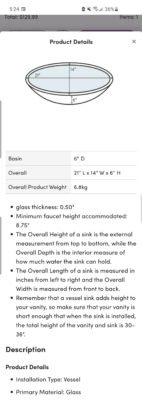

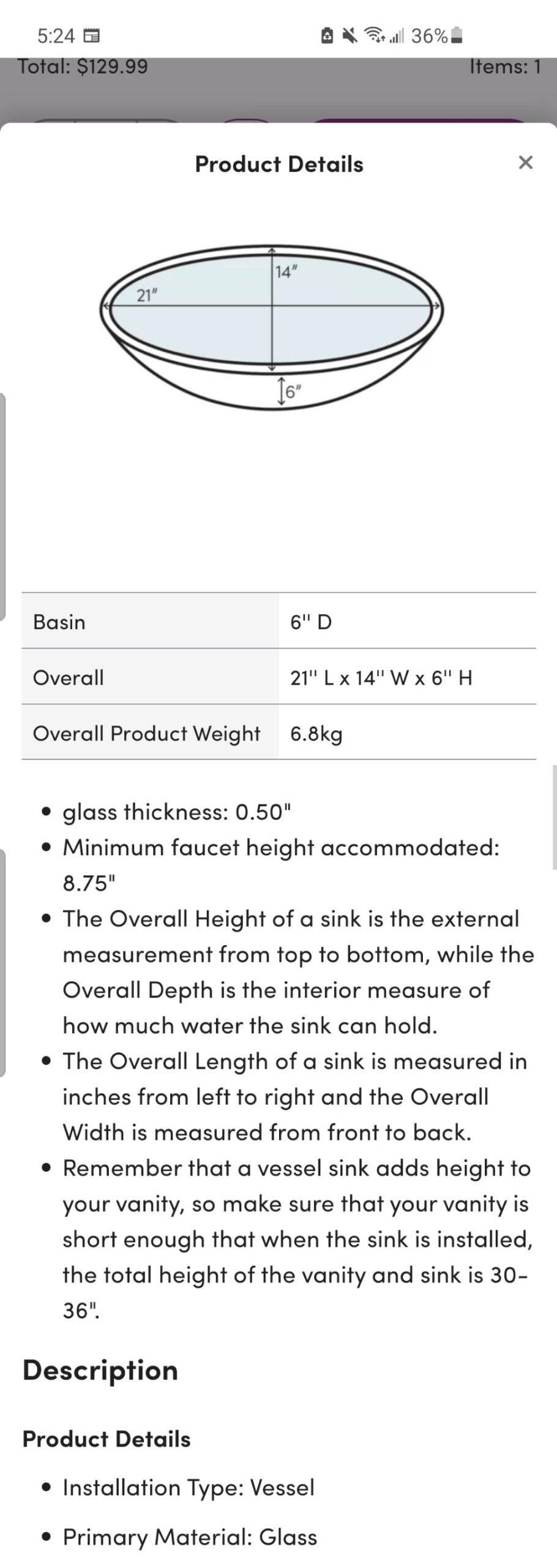

Sink from edge to edge is 14″; drain hole must therefore be a minimum of 7″ from the front edge, and preferably more.  Drain hole should be, I believe, 1  5/8″ diameter – please let me know if that if how you read the measurement too (small solid circle.)

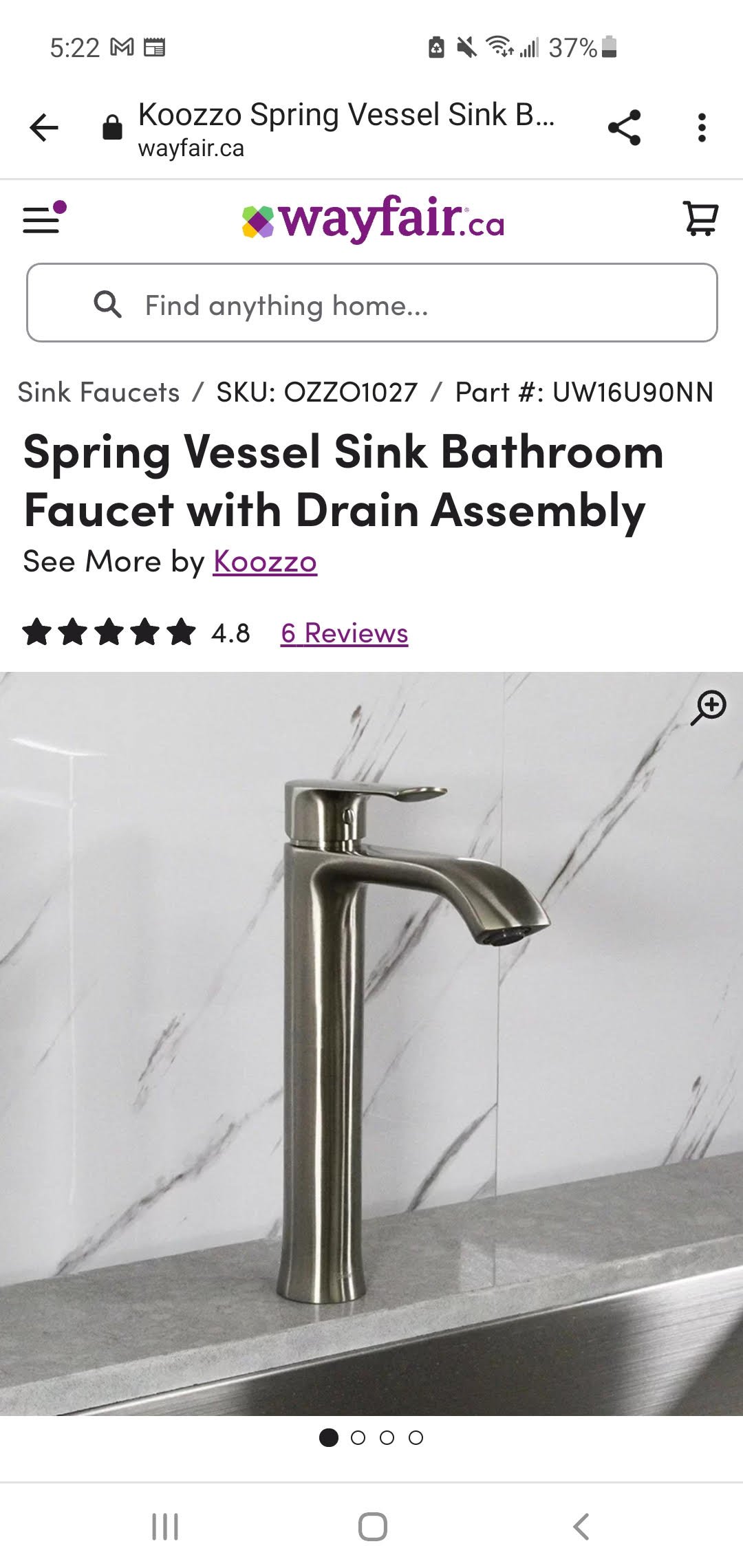

Tap waterline tube is 3cm (sorry for the change in units) and the base of the tap, above the waterline tube, seems to be 52mm. So the tap hole should probably be 32mm or so, but I will confirm if I need insulation or something around that first due to condensation.

Does this all make sense? I can do the proper conversations and take better measurements if you need.

Thank you!

K

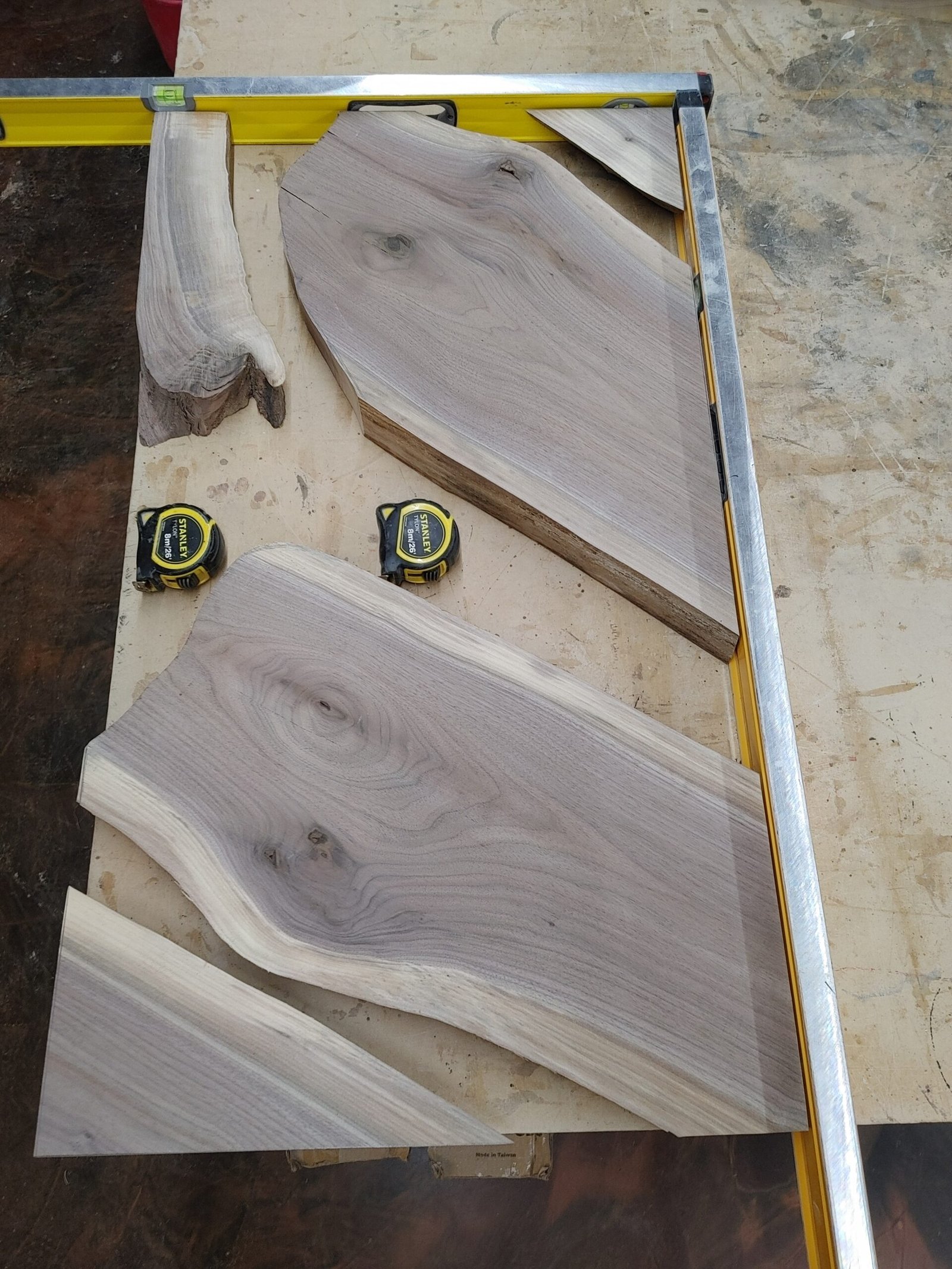

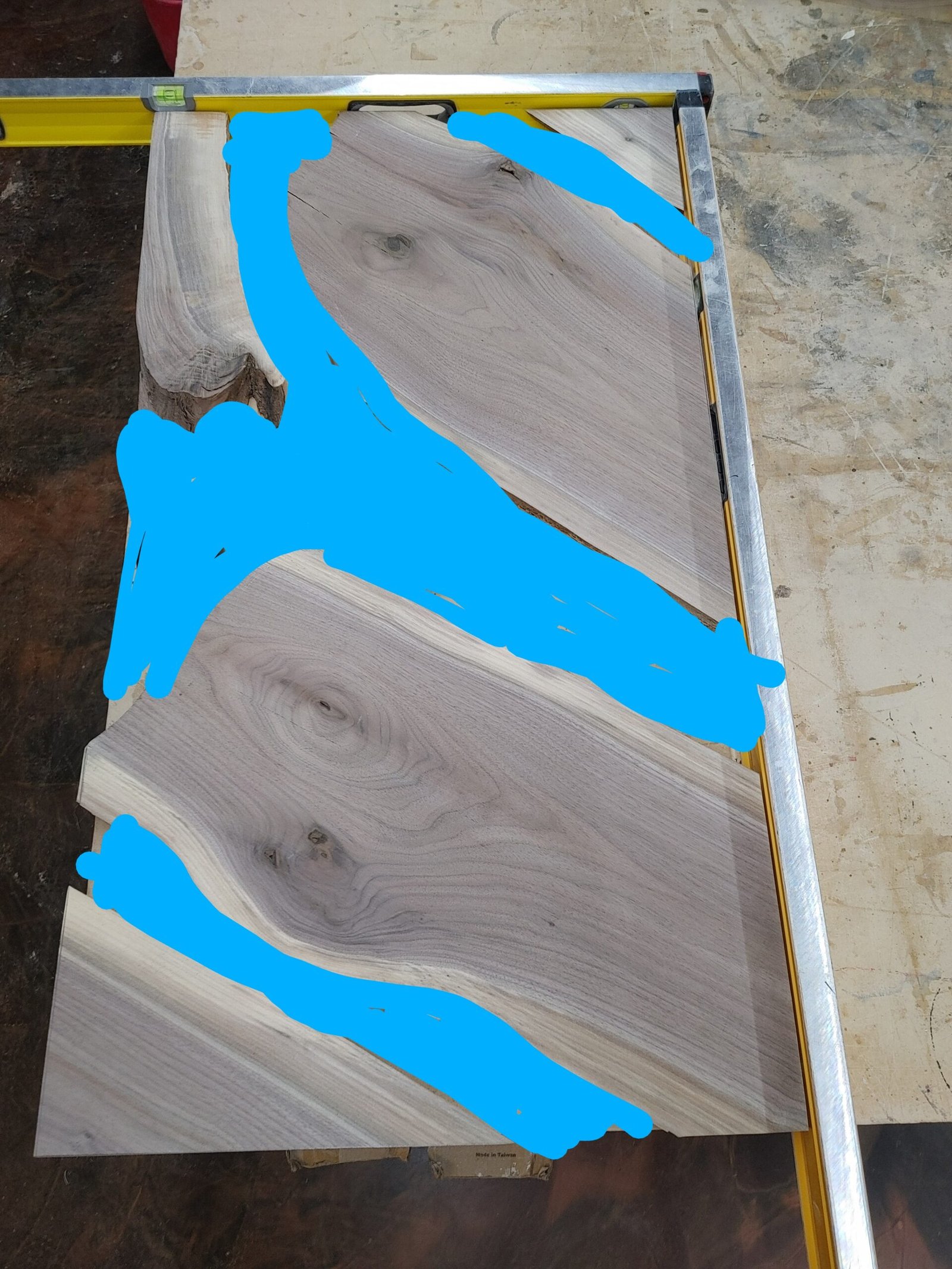

Counter: 40.25″-40.5″ x 1.875ft x 2″ Walnut
Project Status:  Quote Phase | Wood Selection | Production | Delivery

* Wood is always dried & planned to avoid warping.

Est. Production Time: 3-5 Weeks (After wood selection)
Est. Shipping Cost: Added to price $50
Shipping Address: M1C3X7 (TO)
